Customize Podium Concert Truss Aluminum Frame Stage Truss

Customize Podium Concert Truss Aluminum Frame Stage Truss

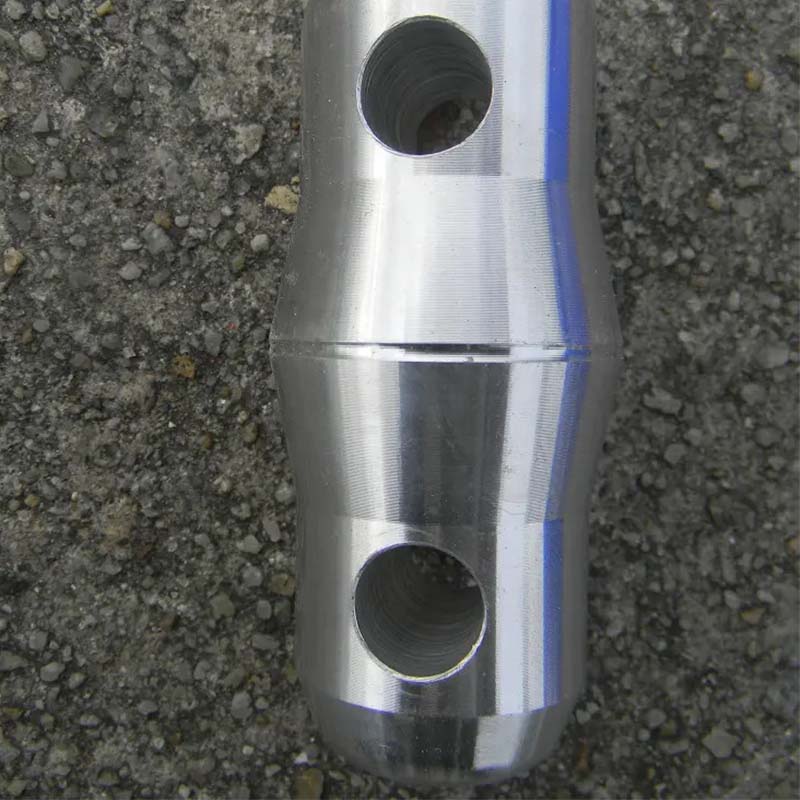

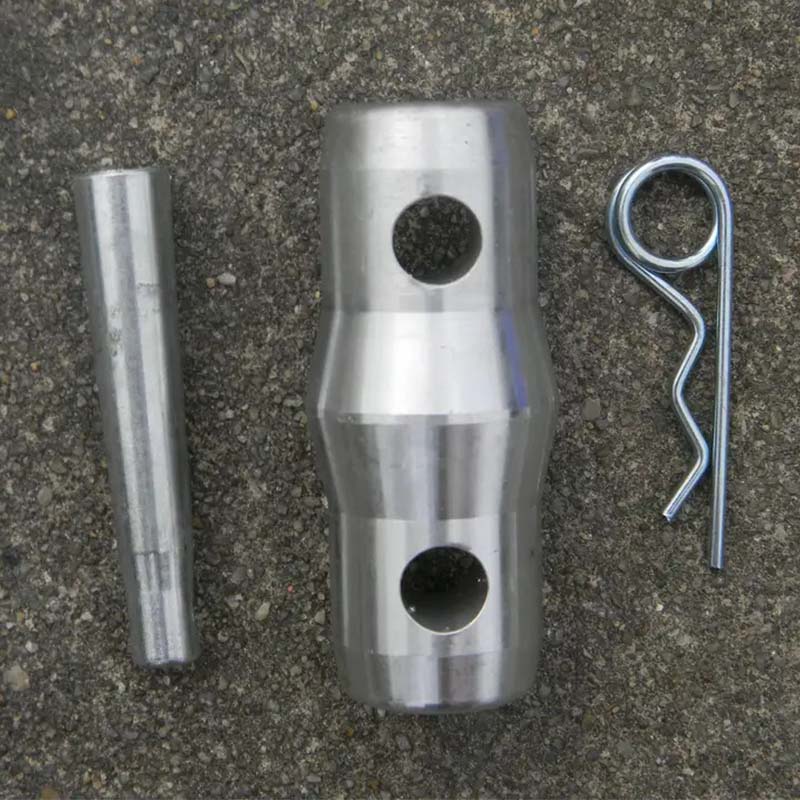

Our Customize Podium Concert Truss Aluminum Frame Stage Truss is using spigot connection way, easy and fast to install. The alumimum truss is strong to lift the speaker and light. All kinds of the stage truss can be retread and reused because it has high corrosion resistence, non rust with high welding and good quality of alloy aluminum tube.

Item No :
TSE-07
Order(MOQ) :
1
Product Origin :
China
Production Capacity :
500 sets/month
Length :
0.5-5m can be optional
Frame / Pole Material :
Aluminum 6061-T6 (Aluminum 6082-T6 is also available)

Inquiry now

Share to :

Product Details

Name	Customize Podium Concert Truss Aluminum Frame Stage Truss
Material	Aluminum 6061-T6 (Aluminum 6082-T6 is also available)
Light duty truss	200200mm, 250250mm;300*300mm
Medium duty truss	400400mm; 450450mm; 400600mm; 520520mm; 500600mm; 400400mm; 450450mm; 400600mm; 520520mm; 500600mm
Heavy duty truss	520*760mm
Length	0.5-5m can be optional

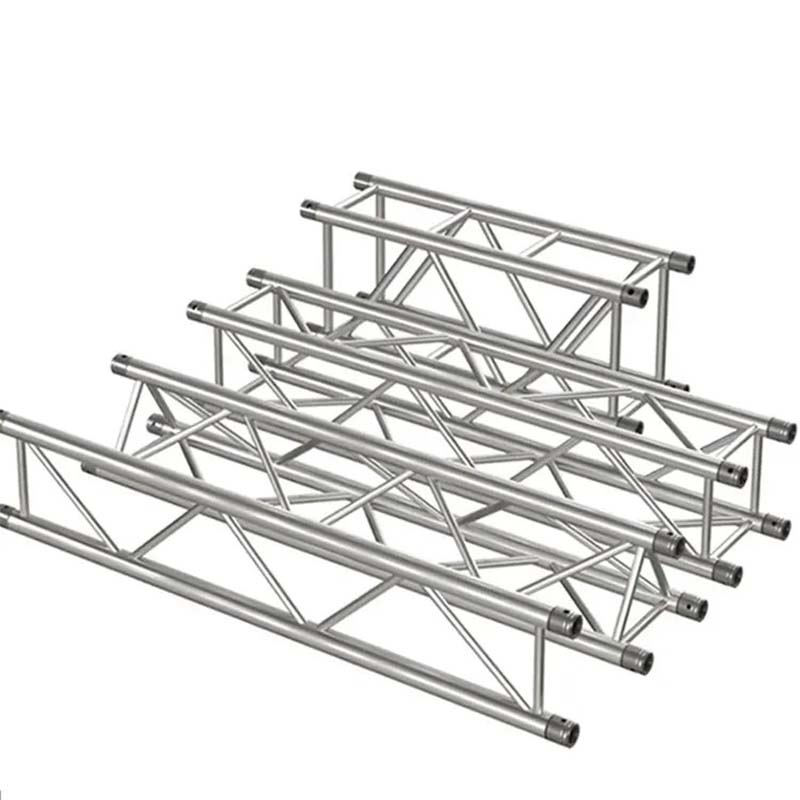

Truss Shape	Flat Truss, Triangle Truss, Square Truss, Circle Truss or Customized
Color	Silver, Black or Customized Color
Application	Exhibition Display, Stage Performance, Event...
Packing	Air Bubble Bag Or Carton/ Customized Flight Cases
Delivery Time	3-15 Days
Transport Type	By Sea, By Air

Size	Main tube	Vice tube	Diagonal bracing	Maximum span	Average load
200*200mm	32*2.0mm	25*2.0mm	15*1.5mm	8m	80kg
250*250mm	32*2.0mm	25*2.0mm	15*1.5mm	10m	100kg
300*300mm	50*3.0mm	32*2.0mm	25*2.0mm	12m	300kg
350*350mm	50*3.0mm	32*3.0mm	25*2.0mm	13m	400kg
400*400mm	50*3.0mm	32*3.0mm	25*2.0mm	15m	500kg
450*450mm	50*3.0mm	40*2.0mm	25*3.0mm	17m	600kg
400*600mm	50*3.0mm	40*2.0mm	25*2.0mm	18m	700kg
