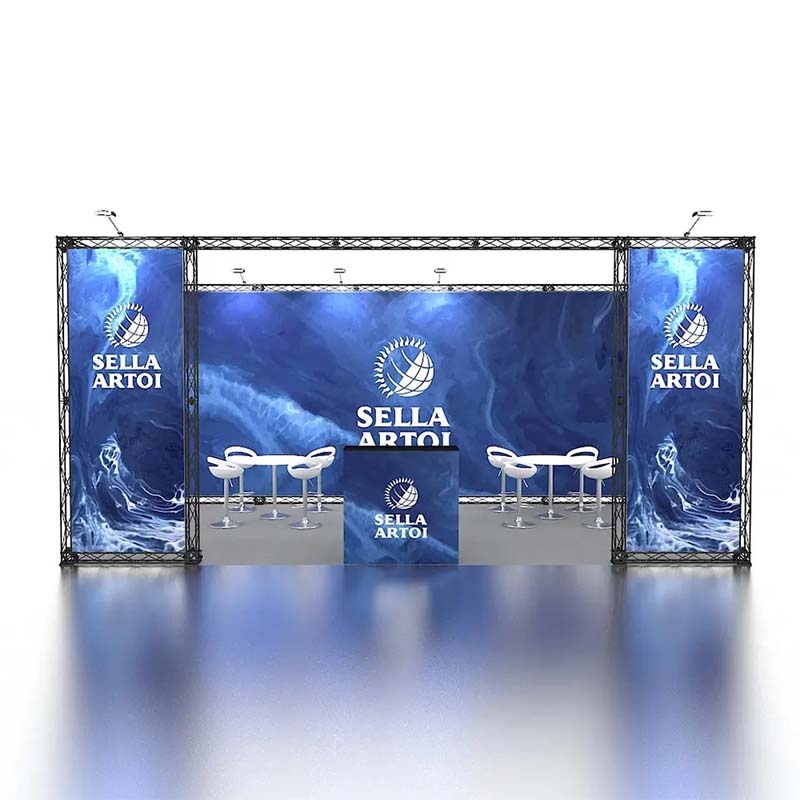

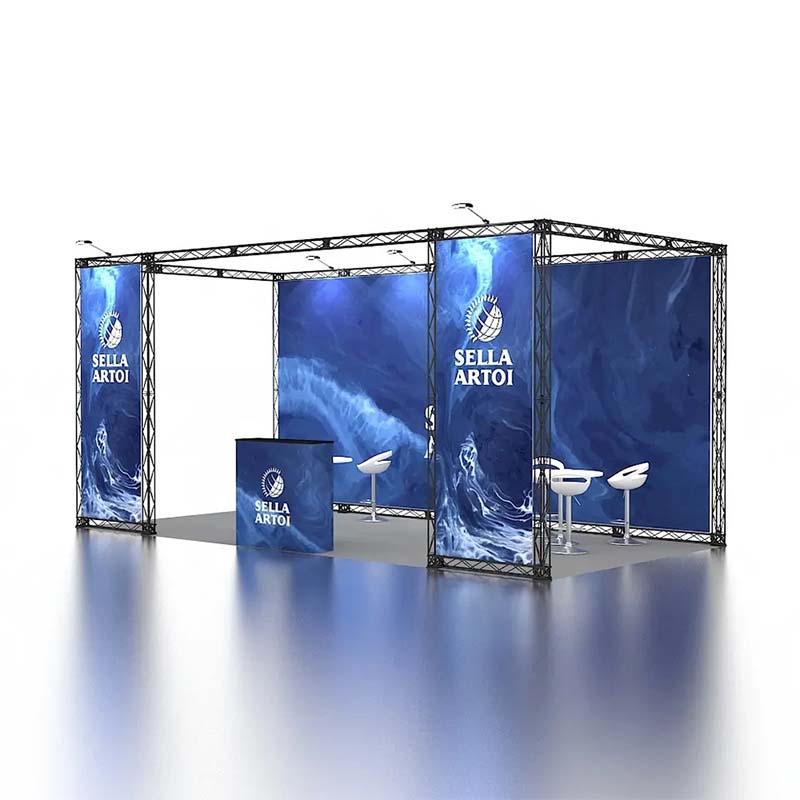

10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
Modular Portable Exhibition Truss
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth

10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth

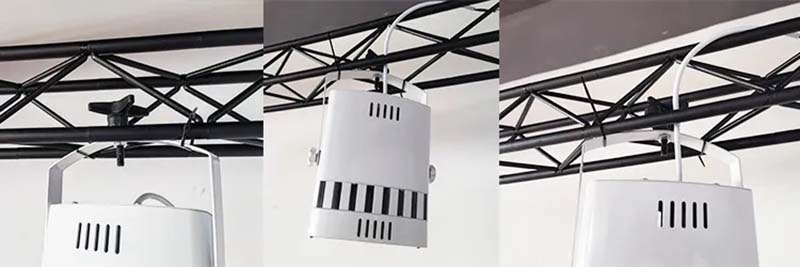

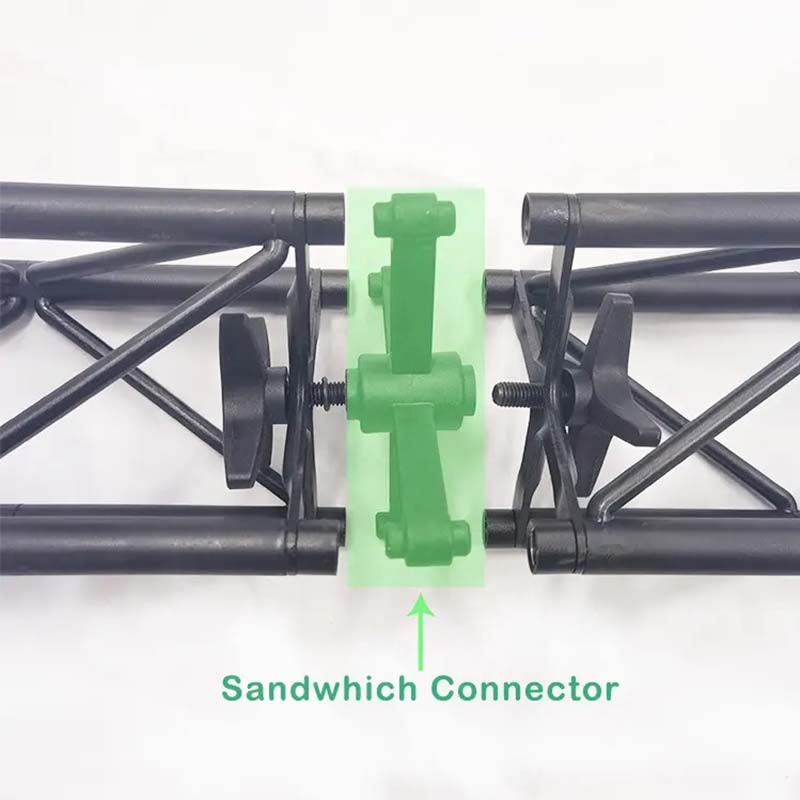

Aluminium Frame Modular Portable Exhibition Truss is using spigot connection way, easy and fast to install. The alumimum truss is strong to lift the speaker and light. All kinds of the stage truss can be retread and reused because it has high corrosion resistence, non rust with high welding and good quality of alloy aluminum tube.

  • Item No :

    TSE-07
  • Order(MOQ) :

    1
  • Product Origin :

    China
  • Production Capacity :

    500 sets/month
  • Length :

    0.5-5m can be optional
  • Frame / Pole Material :

    Aluminum 6061-T6 (Aluminum 6082-T6 is also available)
  • Share to :

Name
10x20 New Design Custom Wholesale Aluminium Frame Modular Portable Exhibition Truss Display Booth
Material
Aluminum 6061-T6 (Aluminum 6082-T6 is also available)
Light duty truss
200*200mm, 250*250mm;300*300mm
Medium duty truss
400*400mm; 450*450mm; 400*600mm; 520*520mm; 500*600mm;
400*400mm; 450*450mm; 400*600mm; 520*520mm; 500*600mm
Heavy duty truss
520*760mm
Length
0.5-5m can be optional
Truss Shape
Flat Truss, Triangle Truss, Square Truss, Circle Truss or Customized
Color
Silver, Black or Customized Color
Application
Exhibition Display, Stage Performance, Event...
Packing
Air Bubble Bag Or Carton/ Customized Flight Cases
Delivery Time
3-15 Days
Transport Type
By Sea, By Air

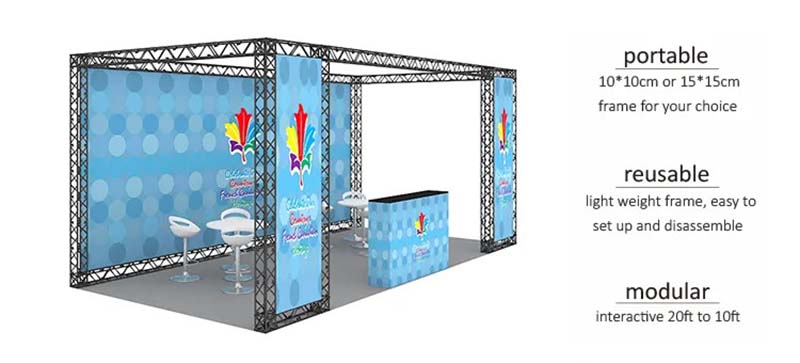

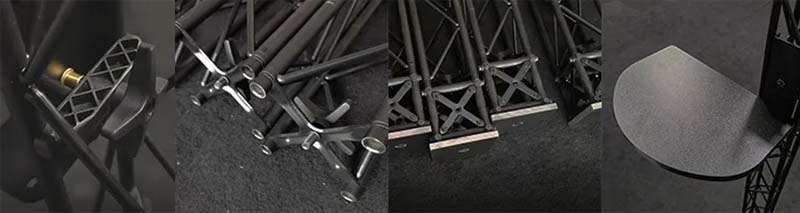

Modular Truss Structure:

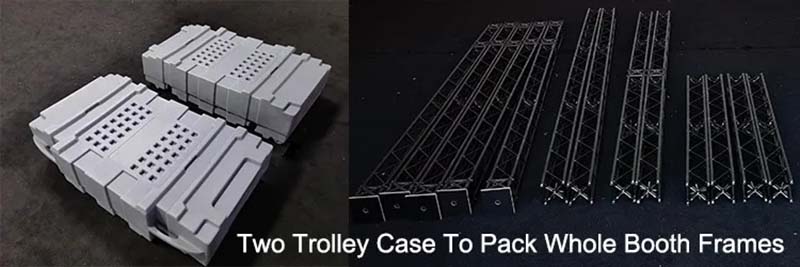

Packing Method:



Size Main tube Vice tube Diagonal bracing Maximum span Average load
200*200mm 32*2.0mm 25*2.0mm 15*1.5mm 8m 80kg
250*250mm 32*2.0mm 25*2.0mm 15*1.5mm 10m 100kg
300*300mm 50*3.0mm 32*2.0mm 25*2.0mm 12m 300kg
350*350mm 50*3.0mm 32*3.0mm 25*2.0mm 13m 400kg
400*400mm 50*3.0mm 32*3.0mm 25*2.0mm 15m 500kg
450*450mm 50*3.0mm 40*2.0mm 25*3.0mm 17m 600kg
400*600mm 50*3.0mm 40*2.0mm 25*2.0mm 18m 700kg
